Whether you're running the flats hunting red fish or cruising the intracoastal waterways, our Little Snapper Series give you the freedom to head out on the water for adventure. This boat features shallow drafts, large casting platform, ample deck space, and aerated live wells. Our Little Snapper Series gives you the ability to be on the water every day because,  "Every day is a boat day."

And he said to them, "Follow me, and I will make you fishers of men. " (Matthew 4:19)

*Please note that all images for this model are conceptual and that the final offering may differ.

Specifications

L.O.A.:                                   16' 10''

Beam:                                        7' 3''

Hull Draft ( Approx)                   8''

 Deadrise:                                                    10°

Fuel Capacity:             23 U.S. Gallons **

Livewell Capacity:              7 U.S. Gallons

Max HP Rating:                                                         115 HP

Rec HP:                                                                            90 HP

Dry Weight without Engine ( Approx):        1,700 lbs.

**Net tank capacity. The usable fuel capacity will be affected by  several factors, including EPA-required fuel system components,  temperature and loading of the boat. These factors will reduce the  usable fuel capacity by approximately 10%


Specifications, as well as standard and optional equipment, are subject to  change without notice. All measurements approximate. For more  information and pricing, please contact your Bonita Boat dealer.

Photo Gallery

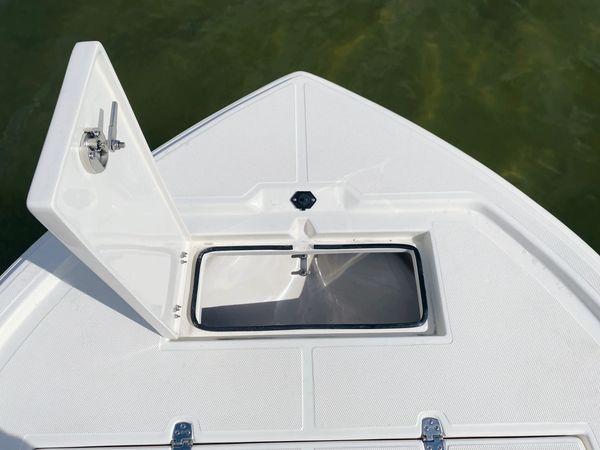

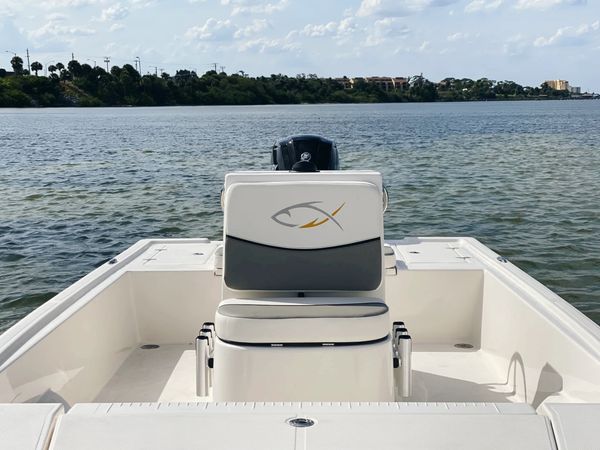

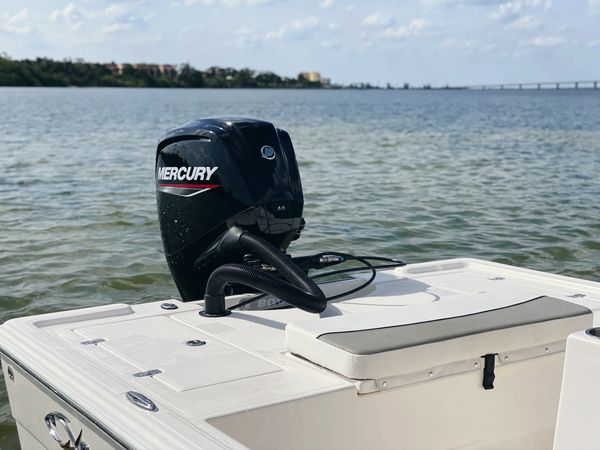

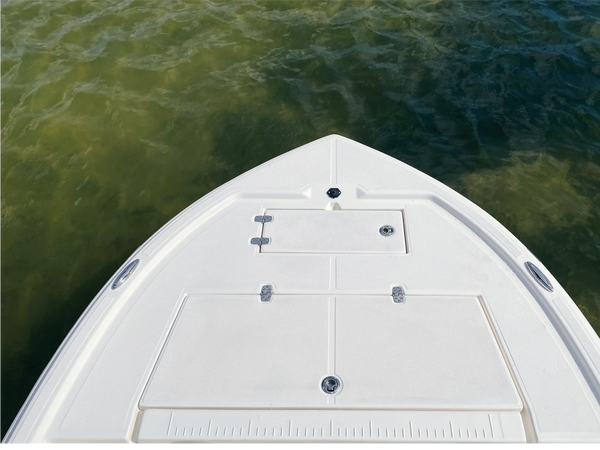

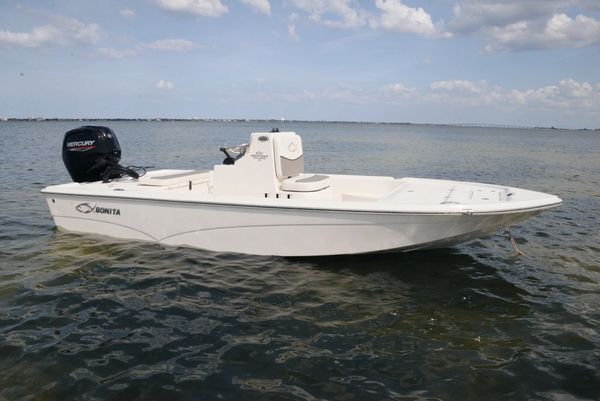

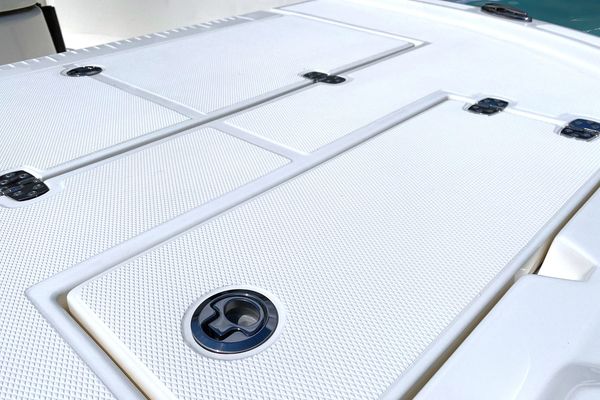

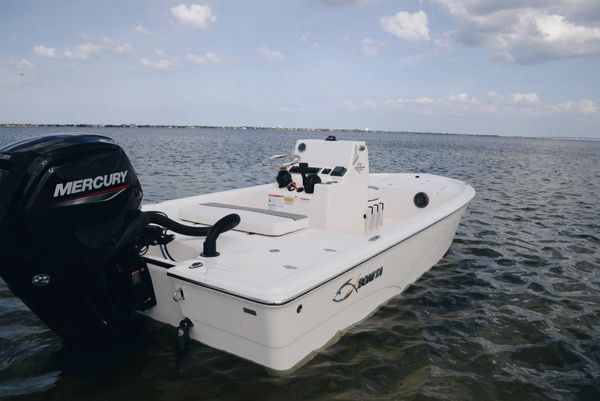

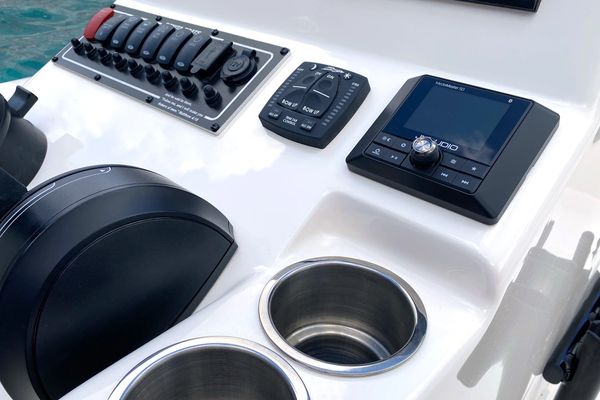

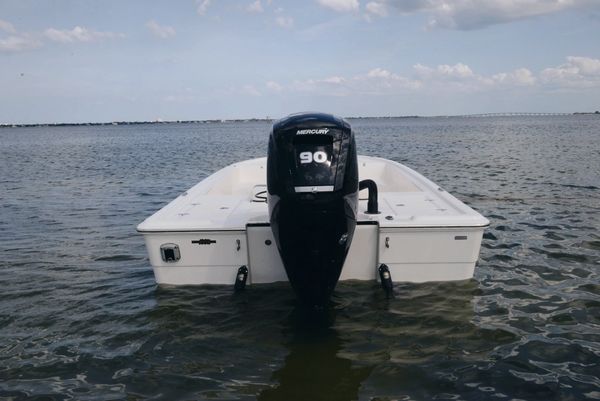

Bonita Little Snapper 171
Bonita Little Snapper 171
Bonita Little Snapper 171
Bonita Little Snapper 171
Bonita Little Snapper 171
Bonita Little Snapper 171
Bonita Little Snapper 171
Bonita Little Snapper 171
Bonita Little Snapper 171
Bonita Little Snapper 171

Performance Specs

Little Snapper 171 - 115EXLPT (pdf)

Download

Standard Features

Helm

Mechanical System

Mechanical System

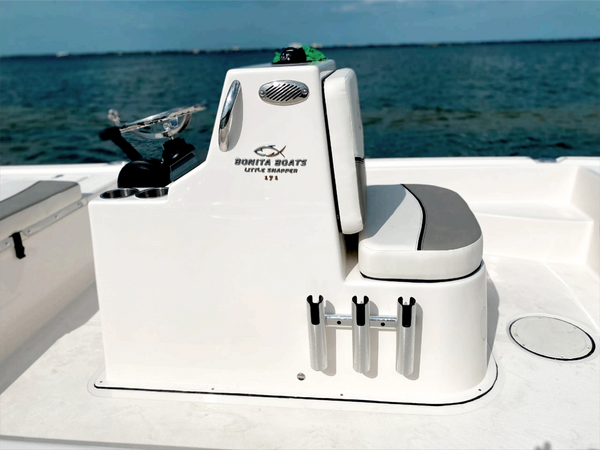

  • Molded Console with Forward Facing Seat
  • Compass
  • 316L Stainless Steel Grab Rail
  • One 12V Outlet (1) and Dual USB Charger (1)
  • 316L Stainless Steel Steering Wheel

Mechanical System

Mechanical System

Mechanical System

  • Bilge Pump with Integrated Float Switch and SS Clad Composite thru Hull Fitting
  • Live well Pump and Thru Hull Fitting

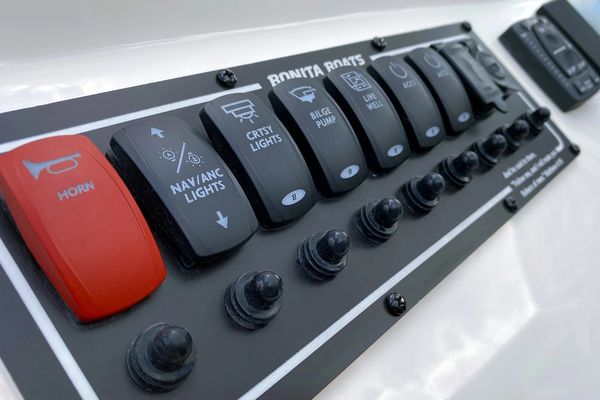

  • LED Trim Indicator Switch

Fuel System

Mechanical System

Fish Features

  • EPA/ ABYC Compliant 23 Gallon  polyethylene Fuel Tank with Deck Fuel Fill.


Fish Features

Comfort and Convenience

Fish Features

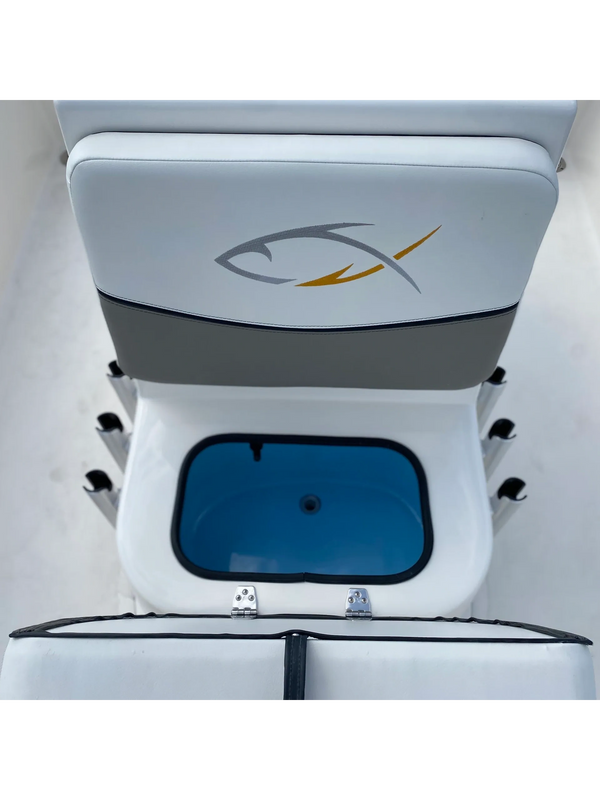

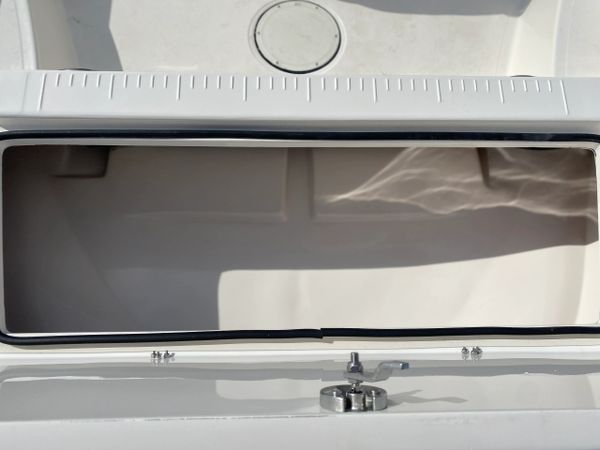

  • Lighted 7 Gallon Recirculating Insulated Live Well

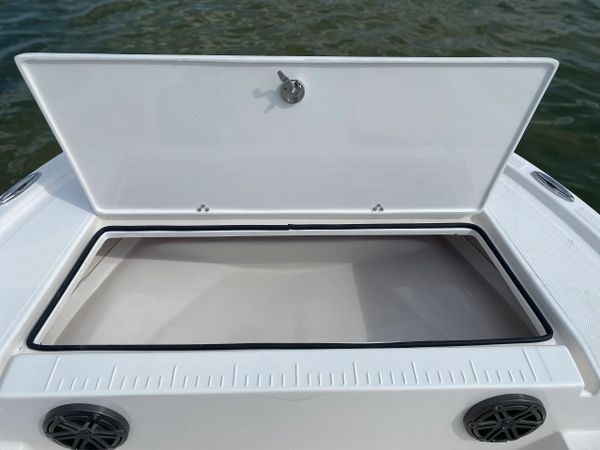

  • Built in Fish Ruler
  • 6 Vertical Rod Holders

Steering

Comfort and Convenience

Comfort and Convenience

  • Tilt Helm
  • Hydraulic Steering


Comfort and Convenience

Comfort and Convenience

Comfort and Convenience

  • 6'' Cutting edge Pull-up Sleek Cleats

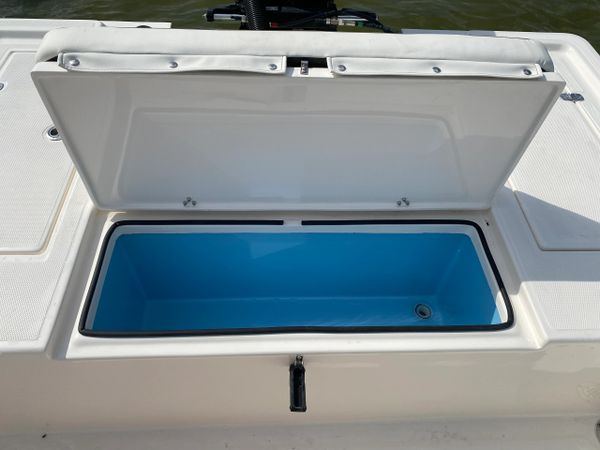

  • 20 Gallon Insulated  Cooler
  • Marine Audio Stereo AM/FM/USB/Bluetooth with 2 Speakers


View All Features

Packages

Fishing Package

Comfort Package

Comfort Package

  • Poling platform
  • Trolling motor Plug with 60amp breaker
  • Lighted Secondary 20 Gallon Insulated Livewell
  • Console Fishing Tackle Storage
  • SIMRAD GO7 XSR Fishfinder/Chartplotter Active Imaging™ Transducer


Comfort Package

Comfort Package

Comfort Package

  • Vessel View,  7-inch MFD
  • 1st Mate Safety and Security System
    •  Hub
    •  Harness
    •  Captain Fob
    •  Captain Wristband
    •  Captain Carabiner Clip
    • Passenger Wristband Passenger Fob
    •  Passenger Carabiner Clip



Optional Features

Trolling motor

Battery Charger Kit

Battery Charger Kit

  • MotorGuide Xi3 (70 lbs)
  • MotorGuide Xi5 (80 lbs)

Battery Charger Kit

Battery Charger Kit

Battery Charger Kit

  •  2 Bank (Trolling motor Batteries only)
  • 3 Bank (All Batteries)

Power-Pole

Battery Charger Kit

Power-Pole

  •  Power-Pole Blade 8 foot (1 or 2)
  • Power-Pole Blade 10 foot (1 or 2)

Power-Pole

  • Poling platform
  • Trolling motor Plug with 60amp breaker
  • Lighted Secondary 20 Gallon Insulated Livewell

  • SIMRAD GO7 XSR Fishfinder/Chartplotter with Active Imaging™ Transducer


  •  VesselView,  7-inch MFD
  • Bimini Top
  • Console Fishing Tackle Storage

Trailer

Standard with SS hardware, LED lights, Radial tires, tongue jack, winch with strap, and Torsion Axle

  • Swing Tongue
  • Spare Tire

  • Upgraded Magnum Wheels
  • Retractable Transom Tie-Down

Color Options

Obsidian
